PRIV Complete Wash Plant: S190 3D/CSP12/WS3250
Complete wash plant:
1.

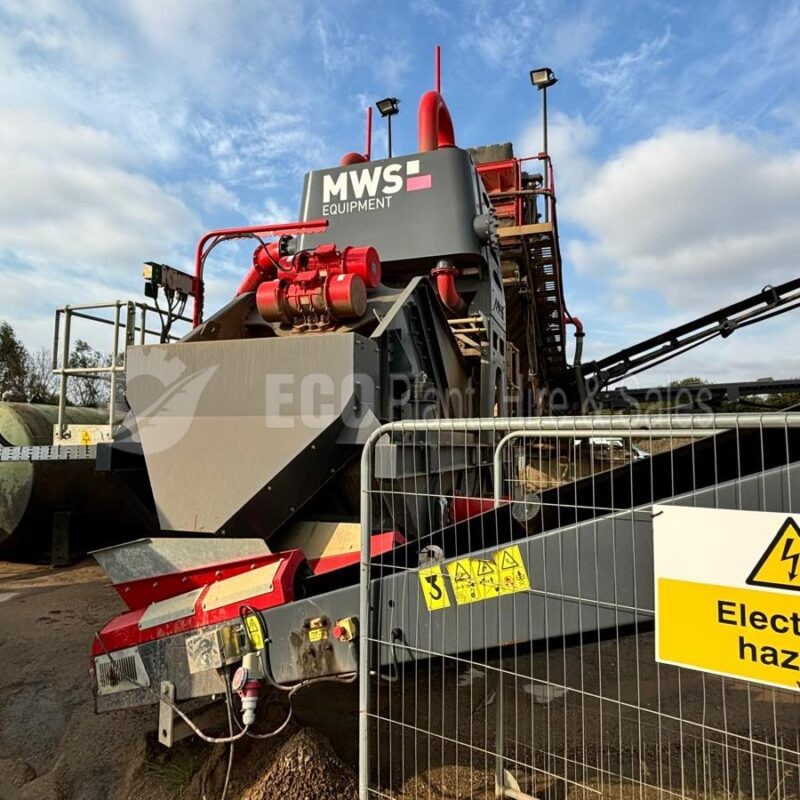

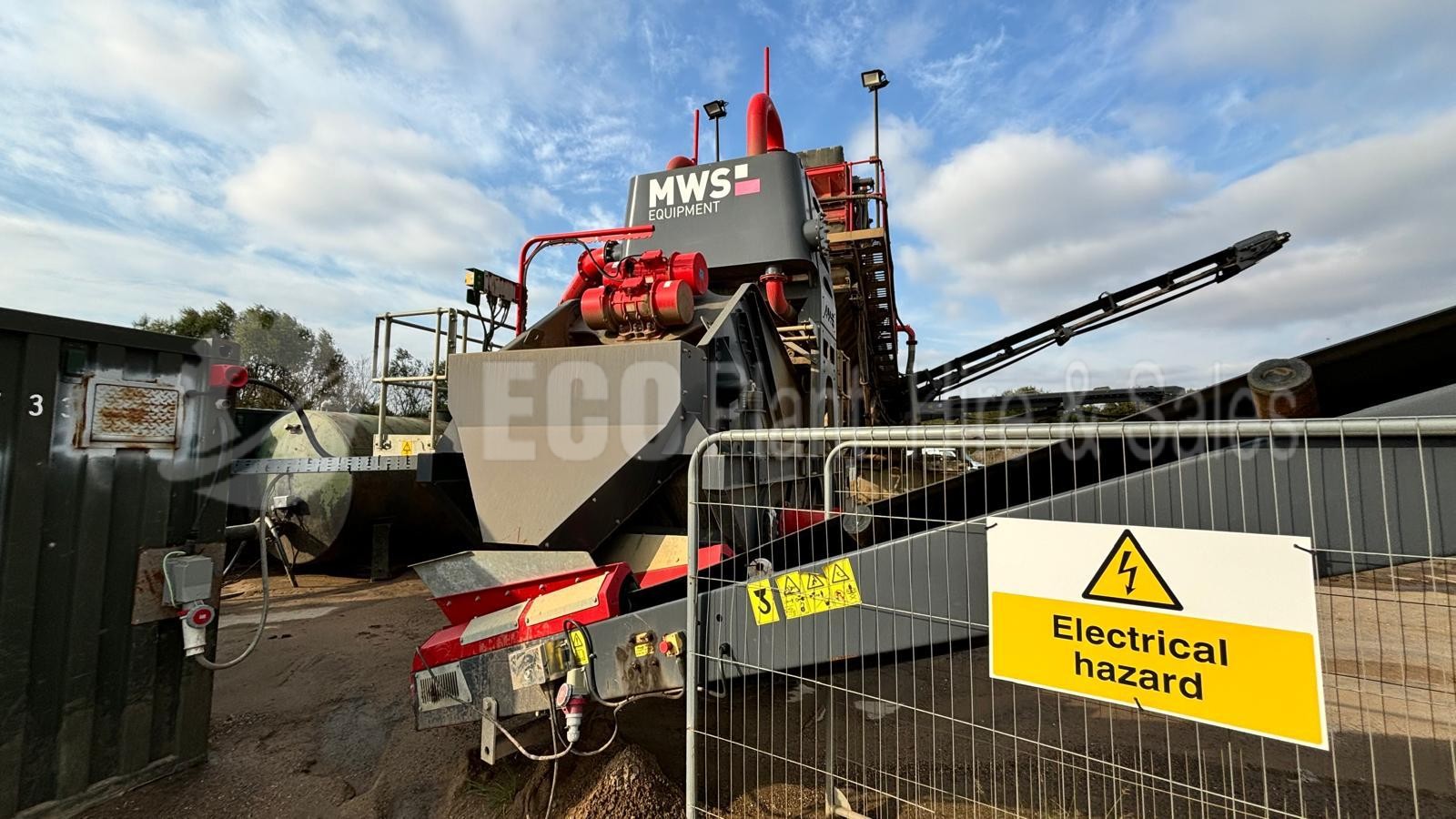

MWS/McCloskey S190 3D Factory Rinser/Washing Screen,
Year 2021,
Approx. 3000 hours -/+,
3 deck rinser screen box:
Top/Middle decks:
6.1m x 1.52m;
Bottom deck:
5.49m x 1.52m
Sand collecting box,
4-th conveyor with hydraulic folding for the transport,
Hopper with hydraulic tipping grid;
2.
MSW CSP12,
Year 2020,
Approx. 3000 hours -/+,
Motor 51kW,
2 x hydrocyclones,
Dewatering screen: 4.5m,
Current set up: 0-6mn sand,
3.
McCloskey WS3250 Wheeled – Radial stacker,
Year 2020,
Diesel engine 49Hp,
Approx. 3000 hours -/+,
Belt length: 15.5m
Belt width: 812mm,
Stockpile height @ 22 degrees: 6.365m
Stockpile capacity @ 22 degrees: 384 cubic meters.
Worldwide Export And Shipping Arranged.
